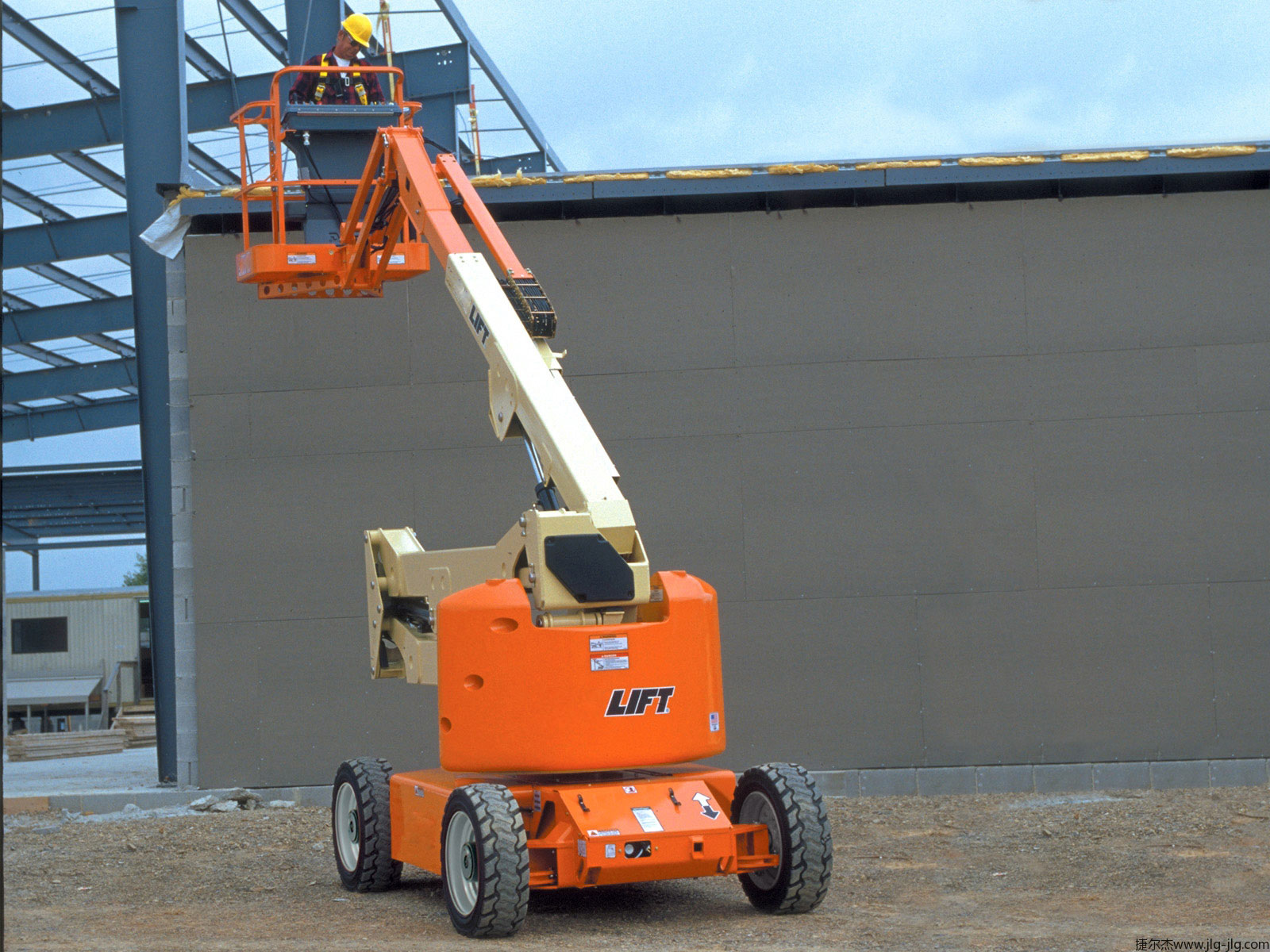

E450A (upgraded)

● Platform height: 13.7 meters ● Machine width: 1.75 meters ● Working height: 15.7 meters ● Rich and diverse: 3 platform heights and jib and no-jib options; 3 chassis widths to suit any work space; electric or multi-fuel. ● Anywhere you go: Overcome obstacles and reach your destination easily; optional forearm can be installed. ● High maneuverability: Easily handle rough terrain with the automatic traction control option. ● Higher efficiency: The load cycle is long and the continuous operation time is correspondingly extended. ● Energy saving and environmental protection: zero typesetting.

Products Details
power supply
Battery 8 x 6V, 370Ah
Electrical System 48 Volts DC

Performance Parameters
Travel Speed ​​- Platform Lowered 5.20 km/h / 3.2 mph
Gradeability - 2WD 30 %
Platform load 230 kg / 507.1 lb
Platform load - unlimited 226.80 kg / 500 lb
Turntable rotation 360 Degrees
Rotation type Discontinuous
Turning Radius - Outside 3.15 m / 10.3 ft
Vertical Jib Rotation 0 Degrees

Dimensions
Ground clearance 0.2 m / 8 in.
Machine height 1.99 m / 6.5 ft
Machine length 5.82 m / 19.1 ft
Machine width 1.75 m / 5.7 ft
Platform size A 0.76 m / 2.5 ft
Platform size B 1.52 m / 5 ft
Platform height 13.72 m / 45 ft
Drift 0 m / 0 in.
Tire size 240/55-17.5 Inflatable
Wheelbase 2.01 m / 6.6 ft

Reach Specifications
Working height 14.19 m / 46.6 ft
Horizontal jib rotation 0 Degrees
Horizontal reach 7.04 m / 23.1 ft
Platform height 13.72 m / 45 ft
Crossing height 7.49 m / 24.6 ft

Basic Specifications
Capacity - Hydraulic oil tank 20 L / 5.3 gal.
Vehicle weight 5715 kg / 12599.4 lb
