Current Location:Home > PRODUCT > Articulated Boom Lifts > 520 series >

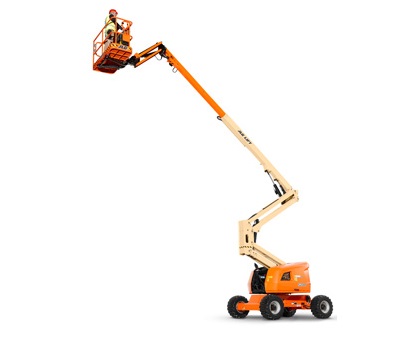

520AJ

● Platform height: 16.0 meters ● Horizontal extension: 10.0 meters ● Working height: 18.0 meters ● Variable speed diesel engine, more energy-efficient and lower operating costs. ● Lifting speed increased by 50%, working efficiency increased by 50% (actual effect will vary) ● Horizontal extension increased by 0.5 meters, with a larger working range ● 250kg load capacity, compared to the previous 230kg load capacity, can carry more tools and materials at one time

Products Details
Auxiliary power 12 Volts DC
Capacity - Fuel tank 60.50 L / 16 gal.
Engine Type - Diesel - HRC Deutz D2.3 L3 Stage IIIA
Engine Type - Diesel - LRC Deutz D2.3 L3 Stage IIIA
power supply

Shaft swing balance 0.1 m / 4 in.
Travel Speed ​​- 4WD 6.80 km/h / 4.2 mph
Gradeability - 4WD 45 %
Platform load - unlimited 250 kg / 551.2 lb
Turntable rotation 355 Degrees
Rotation type Discontinuous
Turning Radius - Outside 4.78 m / 15.7 ft
deleted - Vertical-Jib-Rotation 144 Degrees
Performance Parameters

Ground clearance 0.42 m / 1 ft 5 in.
Machine height 2.27 m / 7.4 ft
Machine length 7.77 m / 25.5 ft
Machine width 2.35 m / 7.7 ft
Platform size A 0.76 m / 2.5 ft
Platform size B 1.83 m / 6 ft
Platform height 16 m / 52.5 ft
Drift 0 m / 0 in.
Dimensions

Horizontal jib rotation 0 Degrees
Horizontal reach 10 m / 32.8 ft
Platform height 16 m / 52.5 ft
Crossing height 7.30 m / 24 ft
Working height 18 m / 59.1 ft
Reach Specifications

Capacity - Hydraulic oil tank 144 L / 38 gal.
Deadweight 6.60 Kg/cm2
Vehicle weight 7985 kg / 17603.9 lb
Vehicle weight 7985 kg / 17603.9 lb
Basic Specifications
