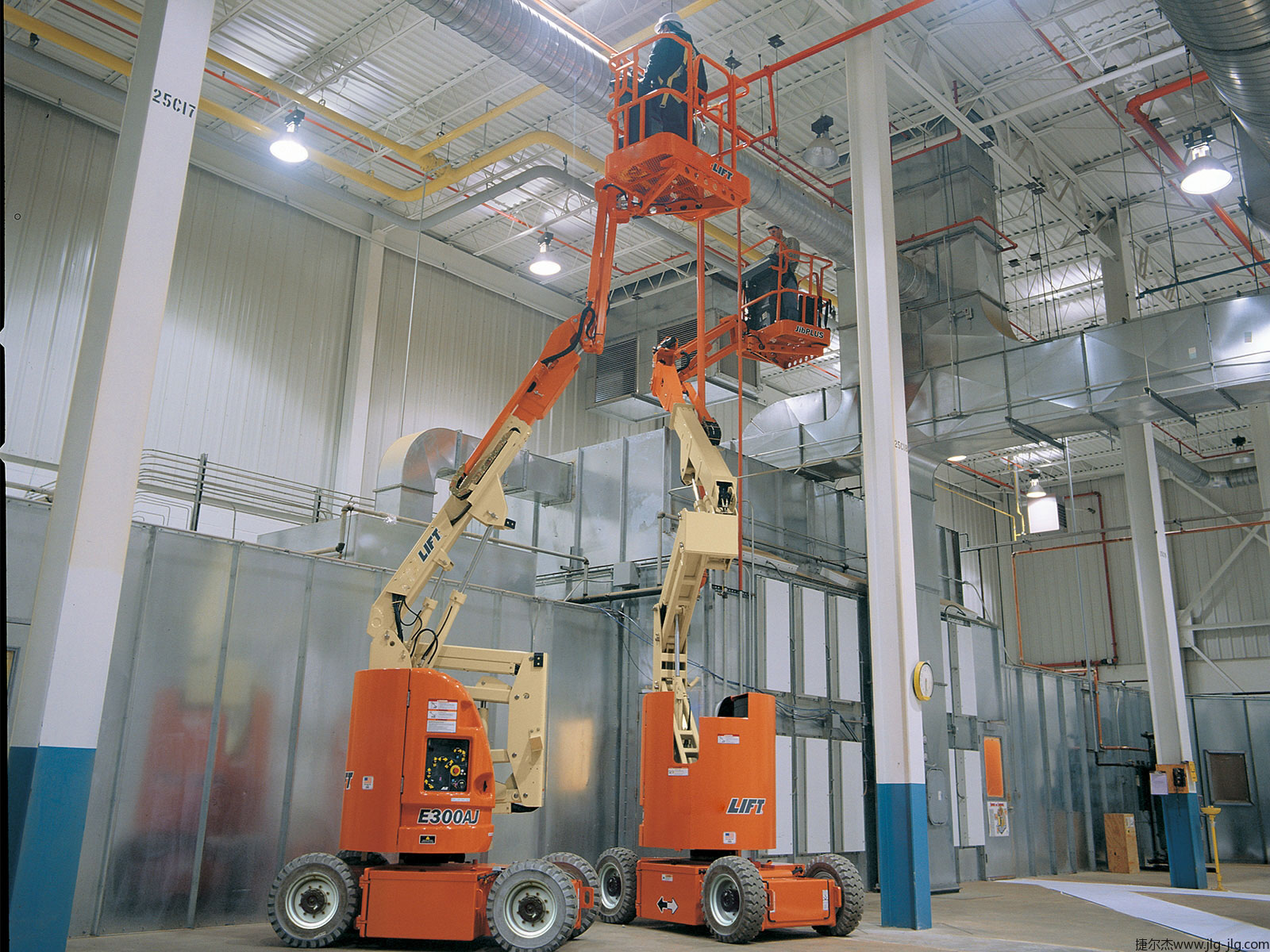

E300AJP

● Platform height: 8.97 meters ● Machine width: 1.22 meters ● Working height: 11.0 meters ● Rich and diverse: 3 platform heights and jib and no-jib options; 3 chassis widths to suit any work space; electric or multi-fuel. ● Anywhere you go: Overcome obstacles and reach your destination easily; optional forearm can be installed. ● High maneuverability: Easily handle rough terrain with the automatic traction control option. ● Higher efficiency: The load cycle is long and the continuous operation time is correspondingly extended. ● Energy saving and environmental protection: zero typesetting.

Inquiry

Products Details

Battery	8 x 6V, 305Ah
Electrical System	48 Volts DC
power supply

Travel Speed - Platform Lowered	4.80 km/h / 3 mph
Gradeability - 2WD	25 %
Platform load	230 kg / 507.1 lb
Platform load - unlimited	226.80 kg / 500 lb
Turntable rotation	350 Degrees
Rotation type	Discontinuous
Turning Radius - Outside	3.10 m / 10.2 ft
Vertical Jib Rotation	144 Degrees
Performance Parameters

Ground clearance	0.1 m / 4 in.
Machine height	2.01 m / 6.6 ft
Machine length	5.74 m / 18.8 ft
Machine width	1.22 m / 4 ft
Platform size A	0.76 m / 2.5 ft
Platform size B	1.22 m / 4 ft
Platform height	8.97 m / 29.4 ft
Drift	0 m / 0 in.
Tire size	25 x 7 x 12 Seamless
Wheelbase	1.65 m / 5.4 ft
Dimensions

Working height	10.97 m / 36 ft
Horizontal jib rotation	180 Degrees
Horizontal reach	6.12 m / 20.1 ft
Platform height	8.97 m / 29.4 ft
Crossing height	4.01 m / 13.2 ft
Reach Specifications

Capacity - Hydraulic oil tank	10.98 L / 2.9 gal.
Vehicle weight	6985 kg / 15399.3 lb
Basic Specifications
