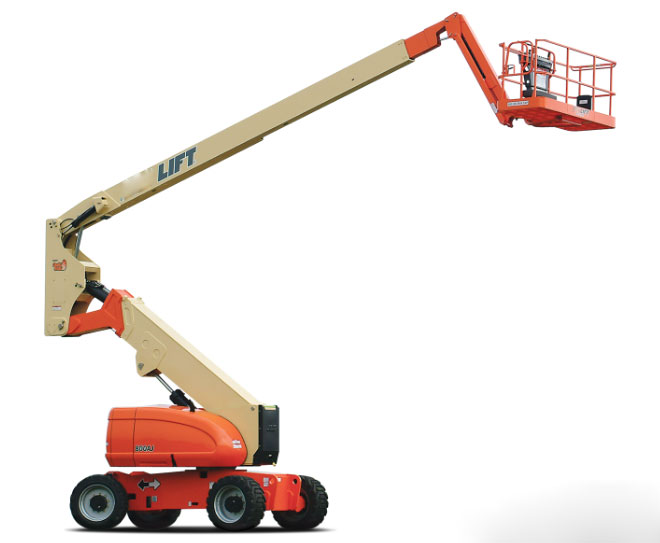

800AJ

● Platform height: 24.5 meters ● Horizontal extension: 15.7 meters ● Working height: 26.5 meters ● With the largest operating range in the industry it gives you greater working distance and versatility. ● The workstation in Sky® accessories can meet all your operational needs. ● Advanced Design Electronics (ADE) reduces your operating costs by improving fuel efficiency and reducing emissions.

Products Details
power supply
Auxiliary power 12 Volts DC
Capacity - Fuel tank 151 L / 39.9 gal.
Engine Type - Diesel - LRC Deutz D2011L04 w/EGR 46 kW 61.6 hp
Engine Type - Dual Fuel GM Vortec 3000 MPR 61 kW 82 hp

Performance Parameters
Shaft swing balance 0.2 m / 8 in.
Travel Speed ​​- 2WD 4.80 km/h / 3 mph
Travel Speed ​​- 4WD 4.80 km/h / 3 mph
Gradeability - 2WD 30 %
Gradeability - 4WD 45 %
Platform load - unlimited 230 kg / 507.1 lb
Turntable rotation 360 Degrees
Rotation type continuous
Turning Radius - Outside (2WD) 6.86 m / 22.5 ft
Turning Radius - Outside (4WD) 4.42 m / 14.5 ft
Vertical Jib Rotation 130 Degrees

Dimensions
Ground clearance 0.3 m / 1 ft
Machine height 3 m / 9.8 ft
Machine length 11.12 m / 36.5 ft
Machine width 2.49 m / 8.2 ft
Platform size A 0.91 m / 3 ft
Platform size B 2.44 m / 8 ft
Platform height 24.46 m / 80.2 ft
Drift 0.76 m / 2 ft 6 in.
Tire size 18 x 19.5 wide tread with raised tread pattern

Reach Specifications
Working height 26.38 m / 86.5 ft
Horizontal jib rotation 0 Degrees
Horizontal reach 15.74 m / 51.6 ft
Platform height 24.46 m / 80.2 ft
Crossing height 9.78 m / 32.1 ft

Basic Specifications
Capacity - Hydraulic oil tank 261 L / 68.9 gal.
Deadweight 5.40 Kg/cm2
Vehicle weight 15558 kg / 34299.5 lb
