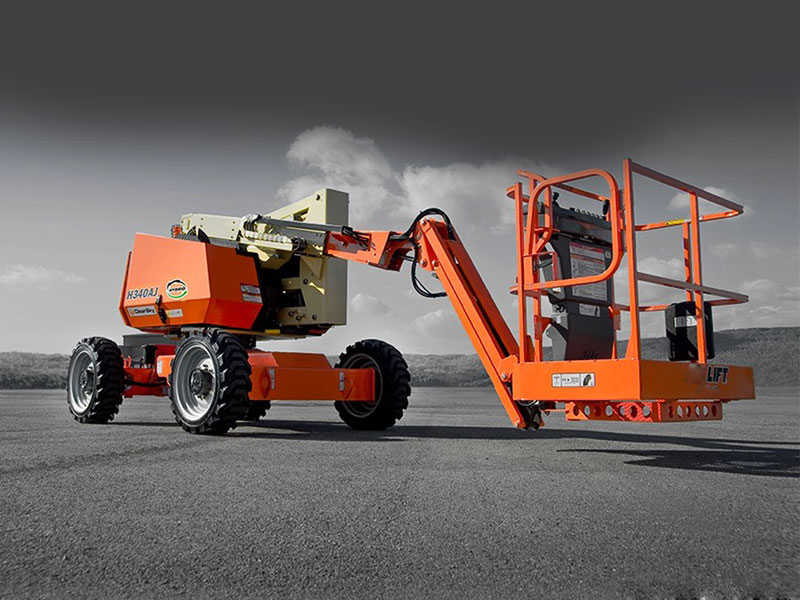

H340AJ Hybrid

● Platform height: 10.3 meters ● Machine width: 1.93 meters ● Working height: 12.3 meters ● Diesel-like performance: Four independent electric motors and a Tier 4 Final diesel generator provide superior terrain adaptability comparable to its diesel counterparts ● Hybrid technology: fully powered by eight 12V 100Ah AGM batteries which are charged by a diesel generator ● Multi-function: The power of diesel engine is combined with the efficiency of hybrid power suitable for indoor and outdoor operations

Inquiry

Products Details

power supply
Battery	12V, 100 Amp-Hour AGM
Electrical System	48 Volts DC
Generator/Engine-Brand	Kubota

Performance Parameters
Travel Speed - Platform Lowered	6 km/h / 3.7 mph
Gradeability - 4WD	45 %
Platform load	230 kg / 507.1 lb
Turntable rotation	355 Degrees
Rotation type	Discontinuous
deleted - Vertical-Jib-Rotation	139 Degrees

Dimensions
Ground clearance	0.24 m / 0.8 ft
Machine height	2 m / 6.6 ft
Machine length	5.52 m / 18.1 ft
Machine width	1.93 m / 6.3 ft
Platform size A	0.76 m / 2.5 ft
Platform size B	1.52 m / 5 ft
Platform height	10.33 m / 33.9 ft
Drift	0.05 m / 2 in.
Tire size	265/50 D20
Wheelbase	1.87 m / 6.1 ft

Reach Specifications
Horizontal jib rotation	0 Degrees
Horizontal reach	6.06 m / 19.9 ft
Platform height	10.33 m / 33.9 ft
Crossing height	5.17 m / 17 ft
Working height	12.33 m / 40.5 ft

Basic Specifications
Capacity - Hydraulic oil tank	77.90 L / 20.6 gal.
Vehicle weight	4472 kg / 9859.1 lb
