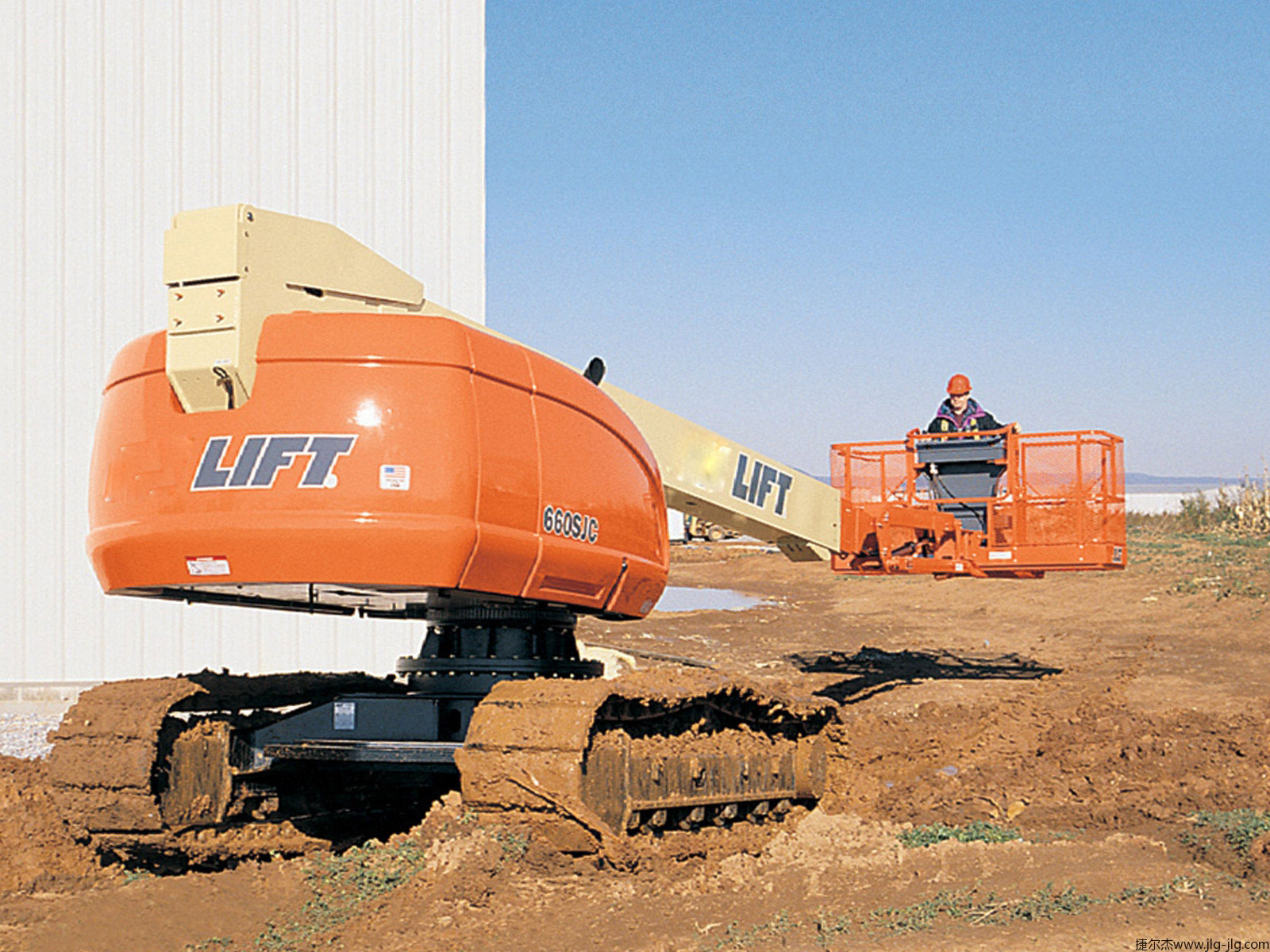

660SJC

660SJC ● Platform height: 20.0 meters ● Horizontal extension: 17.4 meters ● Working height: 22.0 meters ● For the most difficult working environments and terrain conditions the 600 crawler series can provide the best mobility you need. ● Single handle controls driving/steering which can be easily controlled with one hand. ● Zero turning radius allowing you to move more freely on the job site.

Products Details
power supply
Auxiliary power 12 Volts DC
Capacity - fuel tank 117 L / 30.9 gal.
Engine Type - Diesel Deutz TD2.9L4

Performance Parameters
Travel speed - 4 wheel drive 2.57 km/h / 1.6 mph
Gradeability - 4WD 55%
deleted - Jib-_-Range-of-articulation 130 Degrees
Platform load - limited 340kg/749.6lb
Platform load - unlimited 250kg/551.2lb
turntable rotation 360 Degrees
Rotation type continuous

Dimensional data
Ground clearance 0.42 m / 1.4 ft
Machine height 2.50 m / 8.2 ft
Machine length 10.79 m / 35.4 ft
Machine width 2.49 m / 8.2 ft
Platform size A 0.91 m / 3 ft
Platform size B 1.83 m / 6 ft
Platform height 19.99 m / 65.6 ft
Drift 1.22 m / 4 ft
Wheelbase 0.50m

Reach Specifications
Horizontal reach 17.39 m / 57.1 ft
Platform height 19.99 m / 65.6 ft
working height 21.99 m / 72.1 ft

Basic Specifications
Capacity - Hydraulic oil tank 129 L / 34.1 gal.
Vehicle weight 13308 kg / 29339.1 lb
Deadweight 0.79kg/cm2
