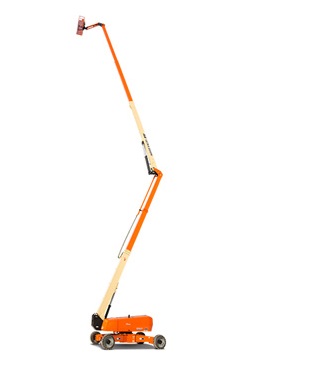

1500AJP

● Platform height: 46.2 meters ● Machine width: 3.10 meters ● Working height: 48.2 meters ● Redefine productivity ● The world's largest high-load capacity working envelope, fully equipped ● JLG QuickStick function, from the maximum height to the ground in only about 2 minutes

Products Details
Auxiliary power 12 Volts DC
Capacity - Fuel tank 170 L / 44.9 gal.
Engine Type - Diesel - LRC Deutz TCD 3.6 T4F
power supply

Travel Speed ​​- 4WD 4.50 km/h / 2.8 mph
Gradeability - 4WD 40 %
Platform load - limited 450 kg / 992.1 lb
Platform load - unlimited 270 kg / 595.2 lb
Turntable rotation 360 Degrees
Rotation type continuous
Turning Radius - Outside (Axle Extended) 6.60 m / 21.7 ft
Turning Radius - Outside (Axle Retracted) 9.50 m / 31.2 ft
deleted - Vertical-Jib-Rotation 130 Degrees
Performance Parameters

Ground clearance 0.3 m / 1 ft
Machine height 3.10 m / 10.2 ft
high 12.10 m / 39.7 ft
Machine width 2.50 m / 8.2 ft
Internal Width 5 m / 16.4 ft
Platform size A 0.91 m / 3 ft
Platform size B 2.44 m / 8 ft
Platform height 46.15 m / 151.4 ft
Drift 0.7 m / 2 ft 4 in.
Dimensions

Horizontal jib rotation 125 Degrees
Platform height 46.15 m / 151.4 ft
Crossing height 18.40 m / 60.4 ft
Working height 48.15 m / 158 ft
Reach Specifications

Capacity - Hydraulic oil tank 352 L / 93 gal.
Deadweight 7.03 Kg/cm2
Vehicle weight 26027 kg / 57379.7 lb

Basic Specifications
