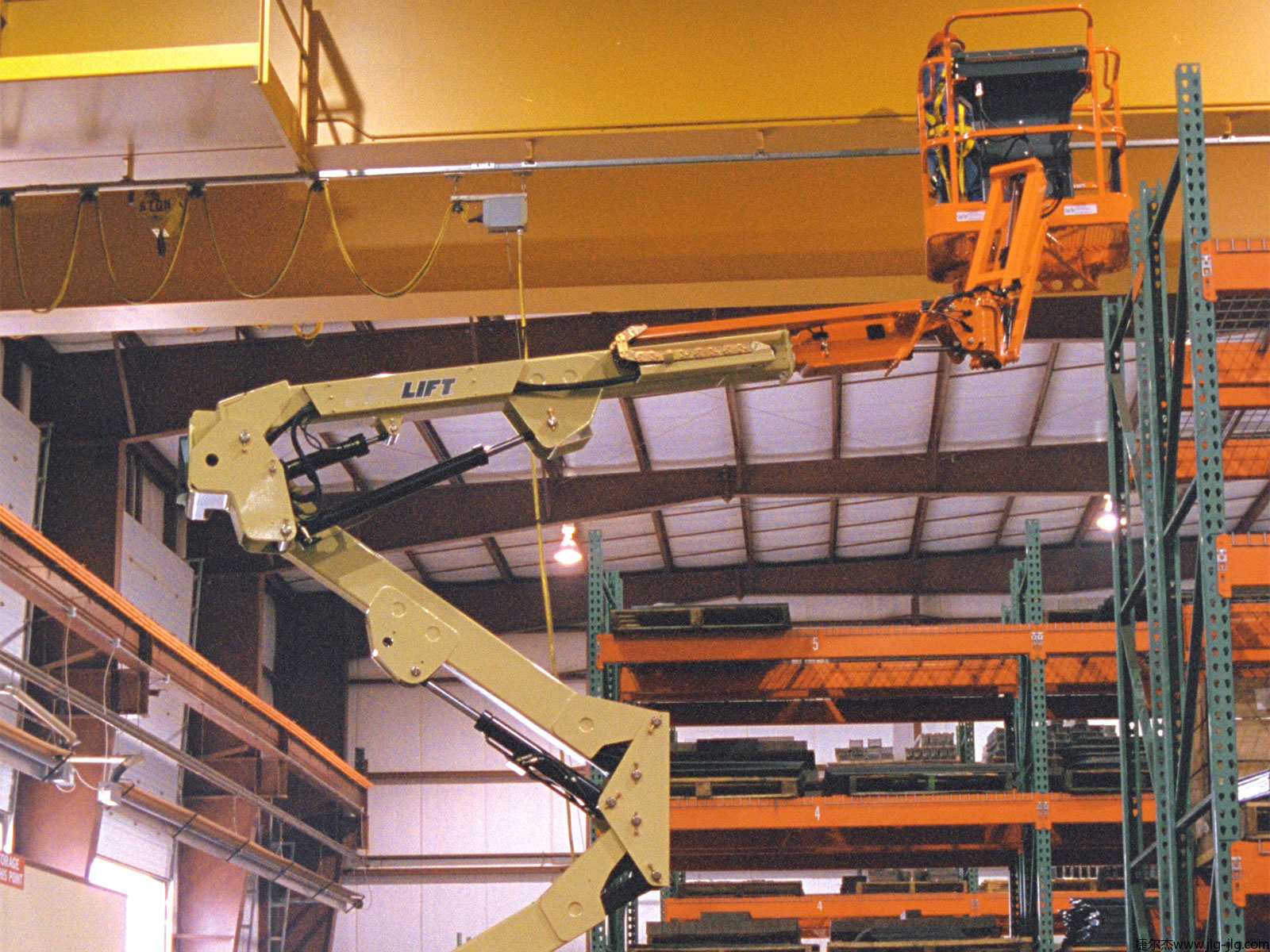

E400AJP

● Platform height: 12.2 meters ● Machine width: 1.50 meters ● Working height: 14.2 meters ● Rich and diverse: 3 platform heights and jib and no-jib options; 3 chassis widths to suit any work space; electric or multi-fuel. ● Anywhere you go: Overcome obstacles and reach your destination easily; optional forearm can be installed. ● High maneuverability: Easily handle rough terrain with the automatic traction control option. ● Higher efficiency: The load cycle is long and the continuous operation time is correspondingly extended. ● Energy saving and environmental protection: zero typesetting.

Products Details
Battery 8 x 6V, 370 Amp-hour
Electrical System 48V DC
power supply

Drive Speed ​​- Platform Lowered 3.2 mph / 5.15 km/h
Gradeability - 2WD 30 %
Platform capacity 500 lbs / 226.80 kg
Platform capacity - unlimited 500 lbs / 226.80 kg
swing 360 degrees
Swing Type Discontinuous
Turning Radius - Outside 10 ft. 4 in. / 3.15 m
Cantilever-articulation range 144 degrees
performance

Distance from the ground 9 in. / 0.22 m
Machine height 6 feet 7 inches. / 2.01 meters
Machine length 22 feet / 6.71 meters
Machine width 5 feet 9 inches. / 1.75 meters
Platform Dimension A 2 feet 6 inches. / 0.76 meters
Platform size B 5 feet / 1.52 meters
Spin 0 in. / 0 m
Tire size 240/55-17.5 Pnumatic
Wheelbase 6 feet 7 inches. / 2.01 meters
Number of sizes

Horizontal cantilever rotation 180 degree
Horizontal expansion 22 ft. 5 in. / 6.83 m
Platform height 40 feet / 12.19 meters
High above 21 ft. 6 in. / 6.55 m
Meet the specifications

Capacity - Hydraulic oil tank 4 gal. / 15.14 liters
Machine weight 13700 lbs / 6214.22 kg
generally
