Current Location:Home > PRODUCT > Articulated Boom Lifts > 400 series >

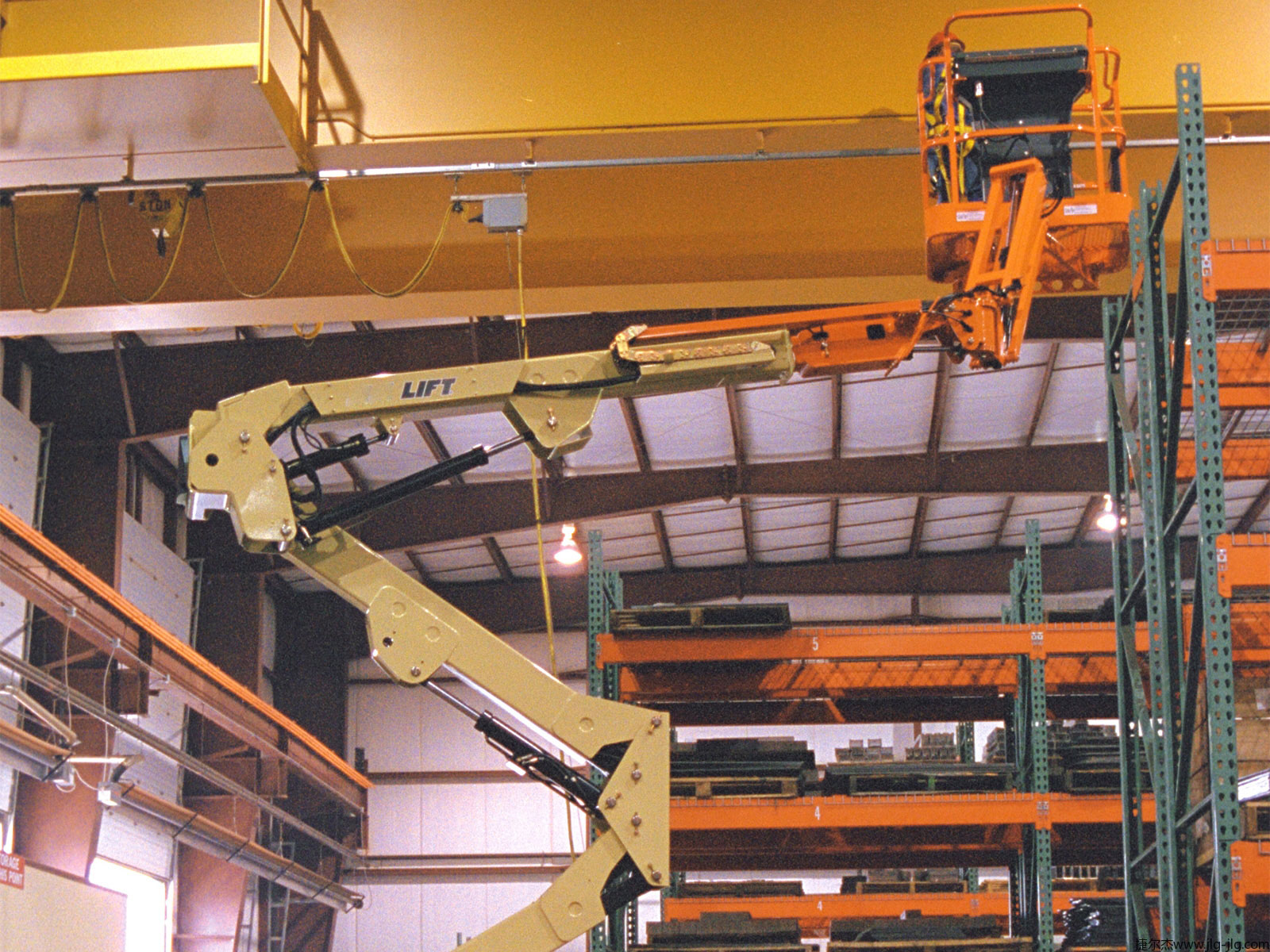

E400AJPN

● Platform height: 12.2 meters ● Machine width: 1.50 meters ● Working height: 14.2 meters ● Rich and diverse: 3 platform heights and jib and no-jib options; 3 chassis widths to suit any work space; electric or multi-fuel. ● Anywhere you go: Overcome obstacles and reach your destination easily; optional forearm can be installed. ● High maneuverability: Easily handle rough terrain with the automatic traction control option. ● Higher efficiency: The load cycle is long and the continuous operation time is correspondingly extended. ● Energy saving and environmental protection: zero typesetting.

Products Details
power supply
Battery 8 x 6V, 370Ah
Electrical System 48 Volts DC

Performance Parameters
Travel Speed ​​- Platform Lowered 4.80 km/h / 3 mph
Gradeability - 2WD 30 %
Platform load 230 kg / 507.1 lb
Platform load - unlimited 226.80 kg / 500 lb
Turntable rotation 360 Degrees
Rotation type Discontinuous
Turning Radius - Outside 3.15 m / 10.3 ft
Vertical Jib Rotation 144 Degrees

Dimensions
Ground clearance 0.13 m / 5 in.
Machine height 1.97 m / 6.5 ft
Machine length 6.71 m / 22 ft
Machine width 1.50 m / 4.9 ft
Platform size A 0.76 m / 2.5 ft
Platform size B 1.22 m / 4 ft
Platform height 12.19 m / 40 ft
Drift 0.1 m / 4 in.
Tire size 22 x 6 x 17.05 Non-marking (front), 25 x 7 x 12 Non-marking (rear)
Wheelbase 2.01 m / 6.6 ft

Reach Specifications
Working height 14.19 m / 46.6 ft
Horizontal jib rotation 180 Degrees
Horizontal reach 6.83 m / 22.4 ft
Platform height 12.19 m / 40 ft
Crossing height 6.55 m / 21.5 ft

Basic Specifications
Capacity - Hydraulic oil tank 20 L / 5.3 gal.
Vehicle weight 6759 kg / 14901 lb
