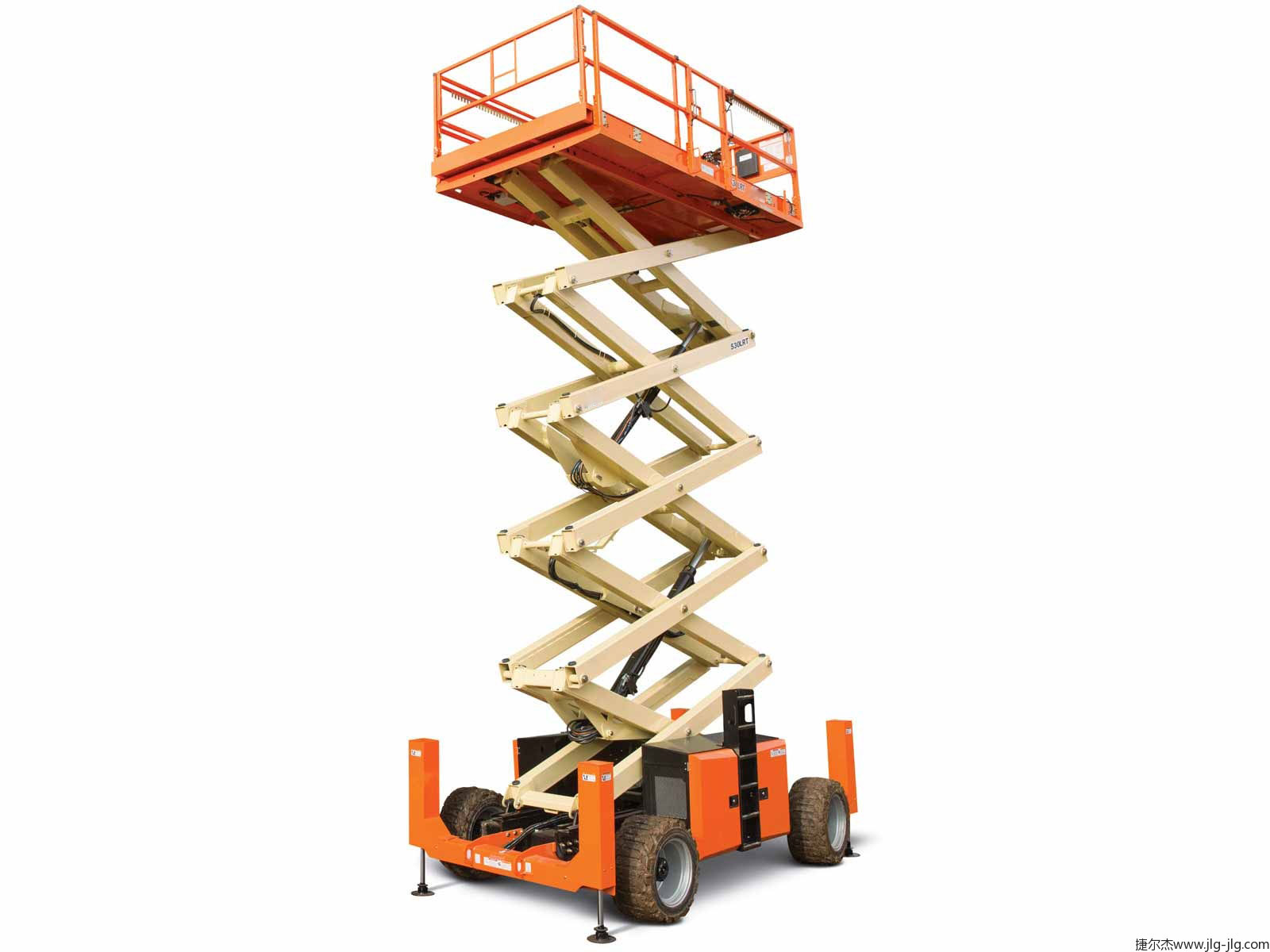

530LRT

● Platform height: 16.2 meters ● Machine width: 2.31 meters ● Working height: 18.2 meters ● The transmission system has been optimized for higher fuel efficiency. ● The standard 1.22m extended deck provides more space for personnel and materials. ● Standard oscillating axle for enhanced ground adaptability.

Products Details
power supply
Battery THAT
Capacity - Fuel tank 83.30 L / 22 gal.
Engine Type - Diesel Kubota D1305 30 hp 22.4 kW
Engine Type - Dual Fuel Kubota WG972 31 23 kW

Basic Specifications
Capacity - Hydraulic oil tank 121.42 L / 32.1 gal.
Vehicle weight 7711 kg / 16999.8 lb
Vehicle weight 7995 kg / 17626 lb
Oscillating Axle - 4x4 Standard / Standard

Performance Parameters
Travel Speed ​​- Platform Raised 0.80 km/h / 0.5 mph
Travel Speed ​​- Platform Lowered 5.60 km/h / 3.5 mph
Climbing grade 40 %
Rising time 65 sec.
Reduce time 60 sec.
Maximum ride height 9.14 m / 30 ft
Platform load 680 kg / 1499.1 lb
Platform Capacity - Extended 230 kg / 507.1 lb
Turning Radius - Outside 6.02 m / 19.8 ft

Dimensions
Ground clearance 0.3 m / 1 ft
Machine height 3.07 m / 10.1 ft
Machine Height - Folding Rails 2.36 m / 7.7 ft
Machine length 4.88 m / 16 ft
Machine width 2.31 m / 7.6 ft
Platform size A 1.81 m / 5.9 ft
Platform size B 3.96 m / 13 ft
Platform extension length 1.14 m / 3.7 ft
Platform height 16.20 m / 53.1 ft
Platform height - lowered 2.13 m / 7 ft
Platform railing height 0.94 m / 3.1 ft
Tire size 12 x 16.5 FF
Wheelbase 2.97 m / 9.7 ft

Reach Specifications
Platform height 16.20 m / 53.1 ft
Working height 18.15 m / 59.5 ft
