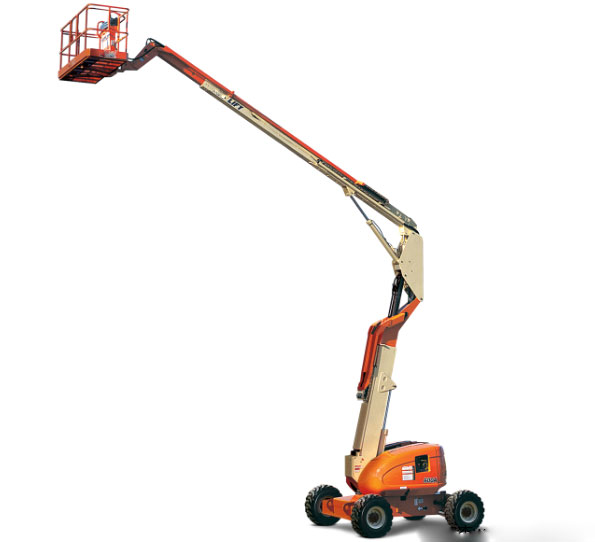

600AN

600AN ● Platform height: 18.4 meters ● Horizontal extension: 12.1 meters ● Working height: 20.4 meters ● Best envelopes in their class. ● Optional articulated arms allow you to reach hard-to-reach places. ● Narrow chassis suitable for limited working areas.

Products Details

600AN

 Platform height: 18.4 meters

 Horizontal extension: 12.1 meters

 Working height: 20.4 meters





 Best envelopes in their class.

 Optional articulated arms allow you to reach hard-to-reach places.

 Narrow chassis, suitable for limited working areas.

power supply
Factory power 12V DC
Capacity - fuel tank 30 gallons. / 113.56 liters
Engine Type - Diesel Deutz TD 2.9L Tier 4 Final 67 HP
Engine Type - Dual Fuel Ford MSG425 84hp

Performance
Axle vibration 8 in. / 0.2 m
Drive Speed ​​- 2WD 4.3 mph / 6.84 km/h
Gradeability - 2WD 30%
Platform capacity is limited 1000 lbs / 453.59 kg
Platform capacity - unlimited 500 lbs / 226.80 kg
swing 360 degrees
Swing Type continuously
Turning Radius - Outside (4WS) 11 feet 2 inches. / 3.4 meters
Cantilever-articulation range 0 degree

Size number
distance from ground 1ft/0.3m
Machine height 8 feet 4 inches. / 2.54 meters
Machine length 26 ft. 5 in. / 8.05 m
Machine width 7 feet / 2.13 meters
Platform Dimension A 3 feet / 0.91 meters
Platform size B 8 feet / 2.44 meters
tail spin 5 inches. / 0.13 meters
Tire size 14 x 17.5 air bosses

Meet the specifications
Horizontal cantilever rotation 0 degree
Horizontal expansion 39 ft. 7 in. / 12.07 m
Platform height 60 ft. 5 in. / 18.42 m
High above 26 ft. 7 in. / 8.1 m

generally
Capacity - Hydraulic oil tank 30.6 gallons. / 115.83 liters
Maximum ground pressure 94 lbs/square inch/6.58 kg/cm²
Machine weight 24100 lbs / 10931.58 kg
