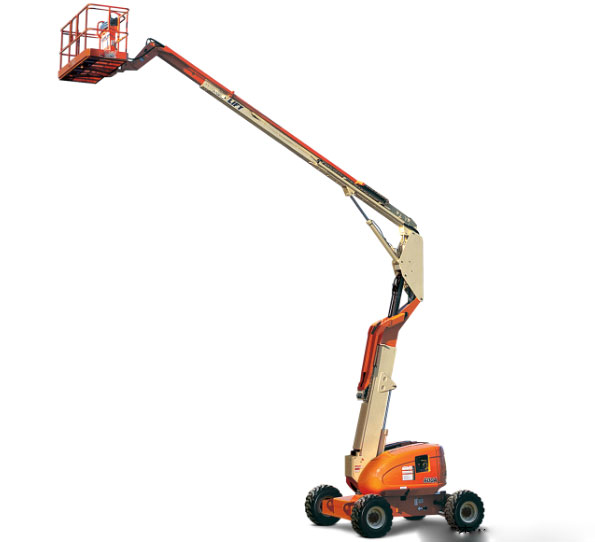

600A

600A ● Platform height: 18.4 meters ● Horizontal extension: 12.1 meters ● Working height: 20.4 meters ● Best-in-class envelopes. ● Optional articulated arms allow you to reach hard-to-reach places. ● Unparalleled mobility in restricted work areas.

Products Details
power supply
Factory power 12V DC
Capacity - fuel tank 30 gallons. / 113.56 liters
Engine Type - Diesel Deutz TD 2.9L Tier 4 Final 67 HP
Engine Type - Dual Fuel Ford MSG425 84hp

Performance
Axle vibration 8 in. / 0.2 m
Drive Speed ​​- 2WD 4.3 mph / 6.84 km/h
Drive speed - 4WD 4.3 mph / 6.84 km/h
Gradeability - 2WD 30 %
Gradeability - 4WD 45 %
Platform capacity is limited 1000 lbs / 453.59 kg
Platform capacity - unlimited 500 lbs / 226.80 kg
swing 360 degrees
Swing Type continuously
Turning radius - outside (2WS) 17 feet 7 inches. / 5.36 meters
Turning Radius - Outside (4WS) 9 feet 6 inches. / 2.9 meters
Cantilever - articulation range 0 degree

Size number
Distance from the ground 1ft/0.29m
Machine height 8 ft. 4 in. / 2.54 m
Machine length 26 ft. 5 in. / 8.05 m
Machine width 8 feet 2 inches. / 2.49 meters
Platform dimension A 3 feet / 0.91 meters
Platform size B 8 feet / 2.44 meters
tail spin 0 inches. / 0 meters
Tire size IN355/55D-6.25 Thin

meet specs
Horizontal cantilever rotation 0 degree
Horizontal expansion 39 feet 7 inches. / 12.07 meters
Platform height 60 feet 5 inches. / 18.42 meters
High above 26 ft. 7 in. / 8.1 m

generally
Capacity - Hydraulic oil tank 30.6 gal. / 115.83 liters
Maximum ground pressure 77 psi / 5.39 kg/cm2
Machine weight 21640 lbs / 9815.74 kg
