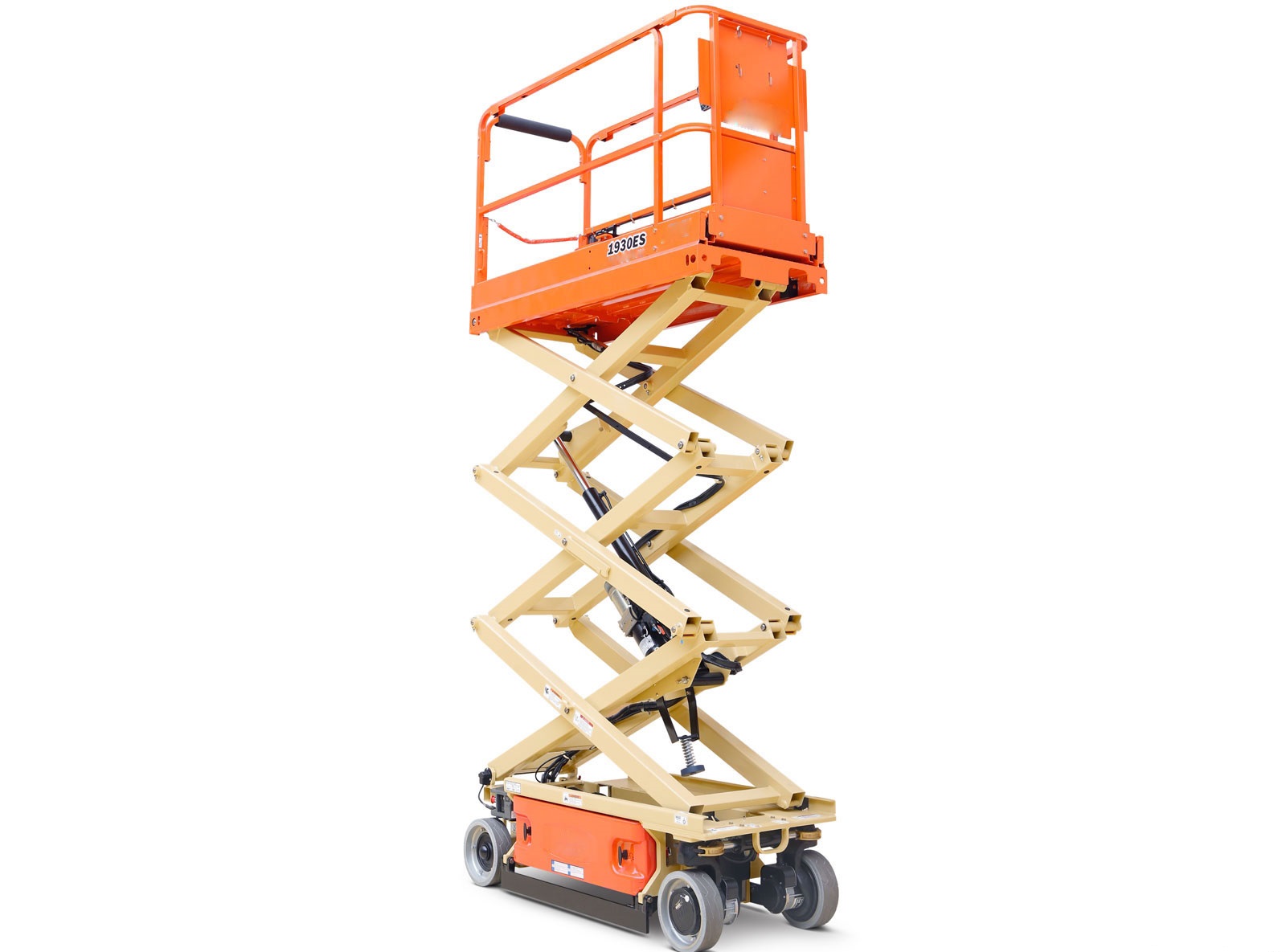

1930ES

● Platform height: 5.72 meters ● Machine width: 0.76m ● Working height: 7.72 meters ● Quieter cleaner operation for a variety of environments. ● Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings throughout the machine will keep you working longer and reduce operating costs by reducing the chance of leaks and service calls. ● Narrow width fits most standard doorways and narrow aisles.

Products Details
power supply
Battery 4 x 6V, 220 amp hours
charger 20 amp automatic (120V/240V – 50/60 Hz)

generally
brake Electric, Friction
Capacity - Hydraulic oil tank 1.3 gal. / 4.73 liters
Maximum ground pressure 109 psi / 7.63 kg/cm2
Hydraulic pump Fixed displacement gear
Machine weight 2710 lbs / 1229.24 kg

performance
Turning Radius - Inside 0 in. / 0 m
Travel Speed ​​- Platform Raised 0.5 mph / 0.80 km/h
Drive Speed ​​- Platform Lowered 3 mph / 4.83 km/h
Drivetrain 24V Electrical
Gradeability 25 %
Lifting time 26 seconds.
Lower time 30 seconds.
Maximum driving height 18 ft. 9 in. / 5.72 m
Maximum lifting height 18.8 ft / 5.72 m
Platform Capacity - Expansion 250 lbs / 113.40 kg
Platform capacity - unlimited 500 lbs / 226.80 kg
Turning Radius - Outside 5 feet 9 inches. / 1.75 meters

Number of sizes
Distance from the ground 4 in. / 0.09 m
Machine height 6 feet 6 inches. / 1.98 meters
Machine length 6 feet 2 inches. / 1.87 meters
Machine width 2 feet 6 inches. / 0.76 meters
Platform Dimension A 2 feet 6 inches. / 0.76 meters
Platform size B 6 feet 2 inches. / 1.87 meters
Platform extension length 3 feet / 0.9 meters
Platform height - lowered 2 feet 10 inches. / 0.86 meters
Platform railing height 3 feet 7 inches. / 1.1 meters
Tire size 12.5 x 4 inches
Wheelbase 5 feet 3 inches. / 1.6 meters

Meet the specifications
Platform height 18 ft. 9 in. / 5.72 m
Working height 24 ft. 9 in. / 7.54 m
