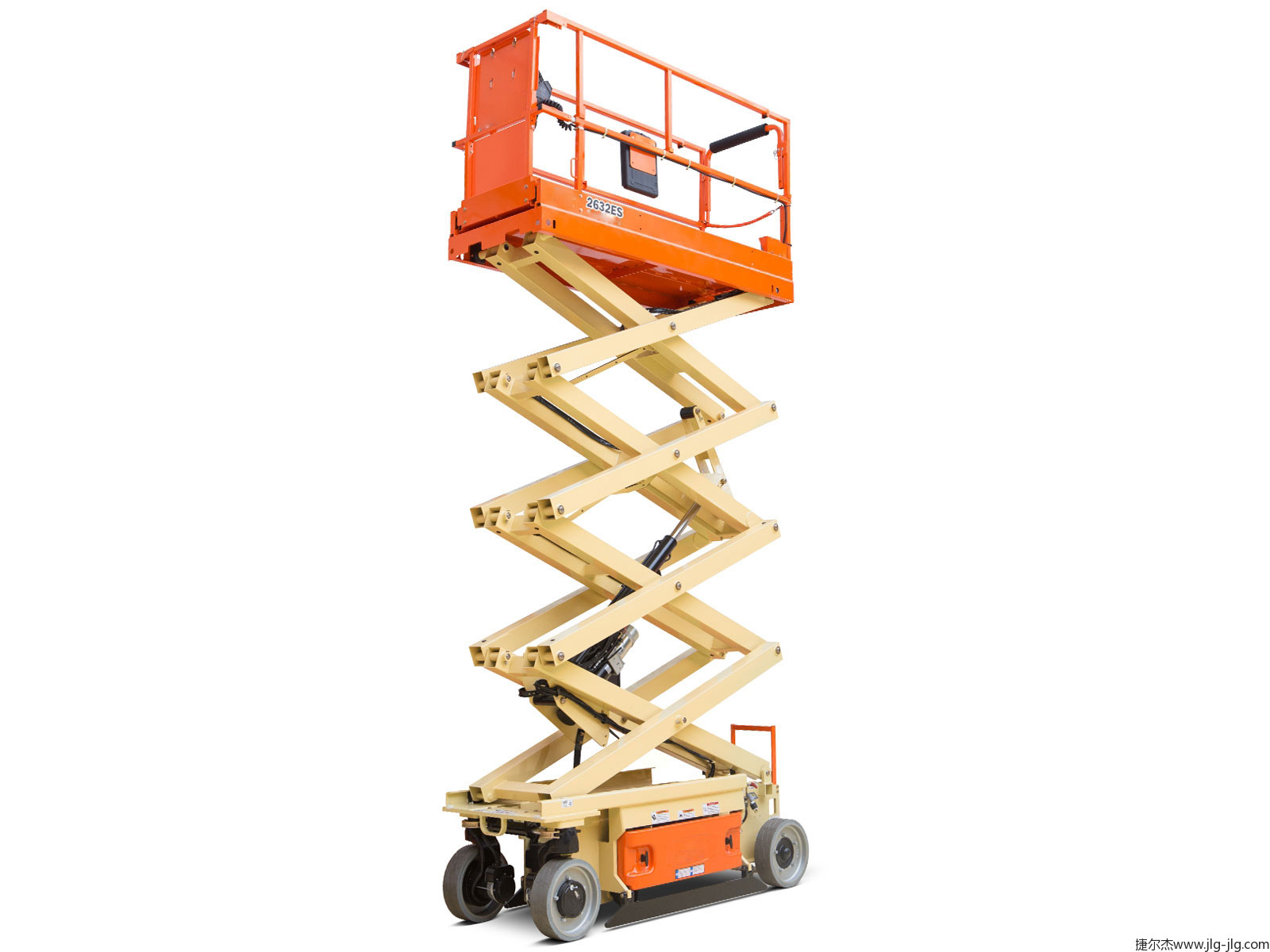

2632ES (discontinued)

● Platform height: 7.77 meters ● Machine width: 0.81m ● Working height: 8.77 meters ● Quieter, cleaner operation for a variety of environments. ● Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings throughout the machine will keep you working longer and reduce operating costs by reducing the chance of leaks and service calls. ● Narrow width fits most standard doorways and narrow aisles.

Products Details
Battery 4 x 6V, 220 amp hours
charger 20 amp automatic
power supply

brake Electric, Friction
Capacity - Hydraulic oil tank 1.3 gal. / 4.73 liters
Maximum ground pressure 90 psi / 6.30 kg/cm2
Hydraulic pump Fixed displacement gear
Machine weight 4635 lbs / 2102.40 kg
generally

Travel Speed ​​- Platform Raised 0.5 mph / 0.80 km/h
Drive Speed ​​- Platform Lowered 2.8 mph / 4.43 km/h
Drivetrain 24V Electrical
Gradeability 25 %
Lifting time 33 seconds.
Lower time 37 seconds.
Maximum driving height 25 ft. 6 in. / 7.77 m
Platform Capacity - Expansion 250 lbs / 113.40 kg
Platform capacity is limited 800 lbs / 362.87 kg
Platform capacity - unlimited 500 lbs / 226.80 kg
Turning Radius - Inside 0 in. / 0 m
Turning Radius - Outside 6 feet 9 inches. / 2.06 meters
Performance

Distance from the ground 4 in. / 0.09 m
Machine height 7 feet 8 inches. / 2.33 meters
Machine height - rails folded 6 feet 5 inches. / 1.94 meters
Machine length 7 feet 7 inches. / 2.3 meters
Machine width 2 feet 8 inches. / 0.81 meters
Platform Dimension A 2 feet 6 inches. / 0.76 meters
Platform size B 7 feet 7 inches. / 2.3 meters
Platform extension length 3 feet / 0.9 meters
Platform height - lowered 4 feet 1 in. / 1.23 m
Platform railing height 3 feet 7 inches. / 1.1 meters
Tire size 16 x 5 inches
Wheelbase 6 feet 2 inches. / 1.88 meters
Number of sizes

Platform height 25 ft. 6 in. / 7.77 m
Working height 31 ft. 6 in. / 9.6 m
Meet the specifications
