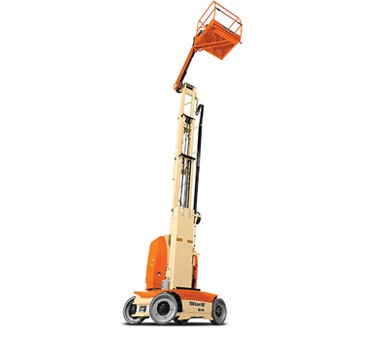

T8E Toucan

● Platform height: 6.15 meters ● Machine width: 0.99m ● Working height: 8.15 meters ● 25% climbing grade and higher ground clearance. ● Adopt DC power drive and brushless AC motor. ● Lower maintenance and operating costs. ● The control device is further simplified, and the operation is extremely smooth. ● Compact size, machine weight is further reduced.

Products Details
Battery 24 volt - 185 amp hours
Electrical System 24 Volts DC
power supply

Travel Speed ​​- Platform Lowered 5.50 km/h / 3.4 mph
Gradeability - 2WD 25 %
Platform load 200 kg / 440.9 lb
Turntable rotation 345 Degrees
Rotation type Discontinuous
Turning Radius - Outside 1.99 m / 6.5 ft
Vertical Jib Rotation 113 Degrees
Performance Parameters

Ground clearance 0.1 m / 4 in.
Machine height 1.99 m / 6.5 ft
Machine length 2.09 m / 6.9 ft
Machine width 0.99 m / 3.2 ft
Platform size A 0.90 m / 3 ft
Platform size B 0.85 m / 2.8 ft
Platform height 6.15 m / 20.2 ft
Drift 0.13 m / 5 in.
Wheelbase 1.20 m / 3.9 ft
Dimensions

Horizontal jib rotation 0 Degrees
Horizontal reach 2.39 m / 7.8 ft
Platform height 6.15 m / 20.2 ft
Crossing height 5.10 m / 16.7 ft
Reach Specifications

Capacity - Hydraulic oil tank 10 L / 2.6 gal.
Vehicle weight 2120 kg / 4673.8 lb

Basic Specifications
