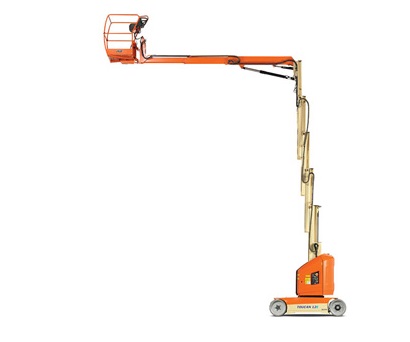

Toucan T12E

● Platform height: 9.83 meters ● Machine width: 1.20 meters ● Working height: 11.8 meters ● Compact size makes it easier to get into hard-to-reach areas. ● Multifunctional articulated jib provides greater horizontal reach and span height. ● 345-degree rotating mast unparalleled positioning performance. ● Can avoid various obstacles on the ground or in the air. ● T12E is equipped with working platform rotation function.

Products Details
power supply
Battery 48 volts - 260 amp hours
Electrical System 48 Volts DC

Performance Parameters
Travel Speed ​​- Platform Lowered 6 km/h / 3.7 mph
Gradeability - 2WD 25 %
Platform load 200 kg / 440.9 lb
Turntable rotation 345 Degrees
Rotation type Discontinuous
Turning Radius - Outside 2.60 m / 8.5 ft
Vertical Jib Rotation 120 Degrees

Dimensions
Ground clearance 0.1 m / 4 in.
Machine height 1.99 m / 6.5 ft
Machine length 3.65 m / 12 ft
Machine width 1.20 m / 3.9 ft
Platform size A 0.70 m / 2.3 ft
Platform size B 1.05 m / 3.4 ft
Platform height 9.83 m / 32.3 ft
Drift 0.13 m / 5 in.
Wheelbase 1.60 m / 5.2 ft

Reach Specifications
Working height 11.83 m / 38.8 ft
Horizontal jib rotation 0 Degrees
Horizontal reach 5.10 m / 16.7 ft
Platform height 9.83 m / 32.3 ft
Crossing height 7.12 m / 23.4 ft

Basic Specifications
Capacity - Hydraulic oil tank 15 L / 4 gal.
