Current Location:Home > PRODUCT > Straight Arm Boom Lifts > Ultra Boom >

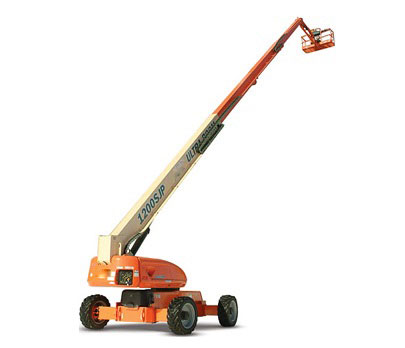

1200SJP

● Platform height: 36.7 meters ● Horizontal extension: 22.9 meters ● Working height: 38.7 meters ● It takes only 95 seconds to rise from the ground to 120 feet. ● 100000-psi high-strength steel and 1000-lb/500-lb dual load configuration ensures superior stability and load-bearing capacity. ● Equipped with fuel-saving Tier 4 engine.

Products Details
auxiliary power 12 Volts DC
Capacity - Fuel tank 117 L / 30.9 gal.
Engine Type - Diesel - LRC Deutz TD2011L4 55.9 kW 74.9 HP
power supply

Shaft Oscillation Balance 0.3 m / 1 ft
Travel speed - 4 wheel drive 5.20 km/h / 3.2 mph
Grade Climb - 4 Wheel Drive 45 %
Platform load - limited 450 kg / 992.1 lb
Platform load - unlimited 230kg/507.1lb
Turntable rotation 360 Degrees
Rotation type continuous
Turning radius - outside (axle extended) 5.89 m / 19.3 ft
Turning Radius - Outside (Axle Retracted) 6.86 m / 22.5 ft
Vertical Jib Rotation 130 Degrees
Performance parameters

high 10.64 m / 34.9 ft
Ground clearance 0.3 m / 1 ft
Machine height 3.05m/10ft
Machine length 13.67 m / 44.8 ft
Machine width 2.49 m / 8.2 ft
Internal Width 3.81 m / 12.5 ft
Platform size A 0.91 m / 3 ft
Platform size B 2.44m/8ft
Platform height 36.73 m / 120.5 ft
Drift 1.68 m / 5.5 ft
Tire size 445/50D710 foam filling
Dimensional data

working height 38.73 m / 127.1 ft
Horizontal forearm rotation 180 Degrees
horizontal reach 22.86 m / 75 ft
Platform height 36.73 m / 120.5 ft
Reach Specifications

Capacity - Hydraulic Tank 250 L / 66 gal.
Deadweight 7.03 kg/cm2
Vehicle weight 18552 kg / 40900.2 lb
Basic Specifications
