Current Location:Home > PRODUCT > Straight Arm Boom Lifts > Ultra Boom >

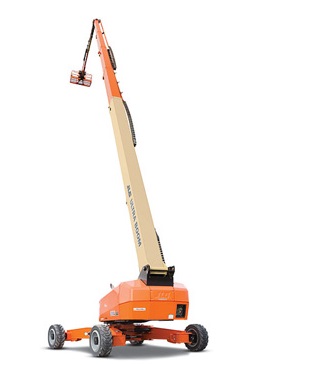

1500SJ

● Platform height: 45.7 meters ● Horizontal extension: 24.4 meters ● Working height: 47.7 meters ● The telescopic arm makes the working range more flexible and the horizontal extension distance in the raised state is also greater. ● Simple transportation: no over-size loading permit is required (overweight permit is required for highway transportation). ● The largest self-propelled straight-arm aerial work platform.

Products Details
auxiliary power 12 Volts DC
Capacity - fuel tank 117 L / 30.9 gal.
Engine Type - Diesel - LRC Deutz TD2011L4 55.9 kW 74.9 hp
power supply

Shaft Oscillation Balance 0.3 m / 1 ft
Travel Speed ​​- 4WD 4.80km/h/3mph
Gradeability - 4WD 40 %
Platform load - limited 450kg/992.1lb
Platform load - unlimited 230kg/507.1lb
turntable rotation 360 Degrees
Rotation type continuous
Turning radius - outside (axle extended) 5.89 m / 19.3 ft
Turning radius - outside (axle retraction) 6.86 m / 22.5 ft
Vertical Jib Rotation 120 Degrees
Performance parameters

high 13.11 m / 43 ft
Ground clearance 0.3 m / 1 ft
Machine height 3.05 m / 10 ft
Machine length 18.81 m / 61.7 ft
Machine width 2.49 m / 8.2 ft
internal width 3.81 m / 12.5 ft
Platform size A 0.91 m / 3 ft
Platform size B 2.44 m / 8 ft
Platform height 45.72 m / 150 ft
flick 1.68 m / 5.5 ft
tire size 445/50D710 Foam filling
Dimensional data

Working height 47.72 m / 156.6 ft
Horizontal forearm rotation 0 Degrees
Horizontal reach 24.38 m / 80 ft
Platform height 45.72 m / 150 ft
Reach distance specification

Capacity - Hydraulic Tank 250 L / 66 gal.
Deadweight 7.95 Kg/cm2
Vehicle weight 21772kg/47999lb
Basic specifications
