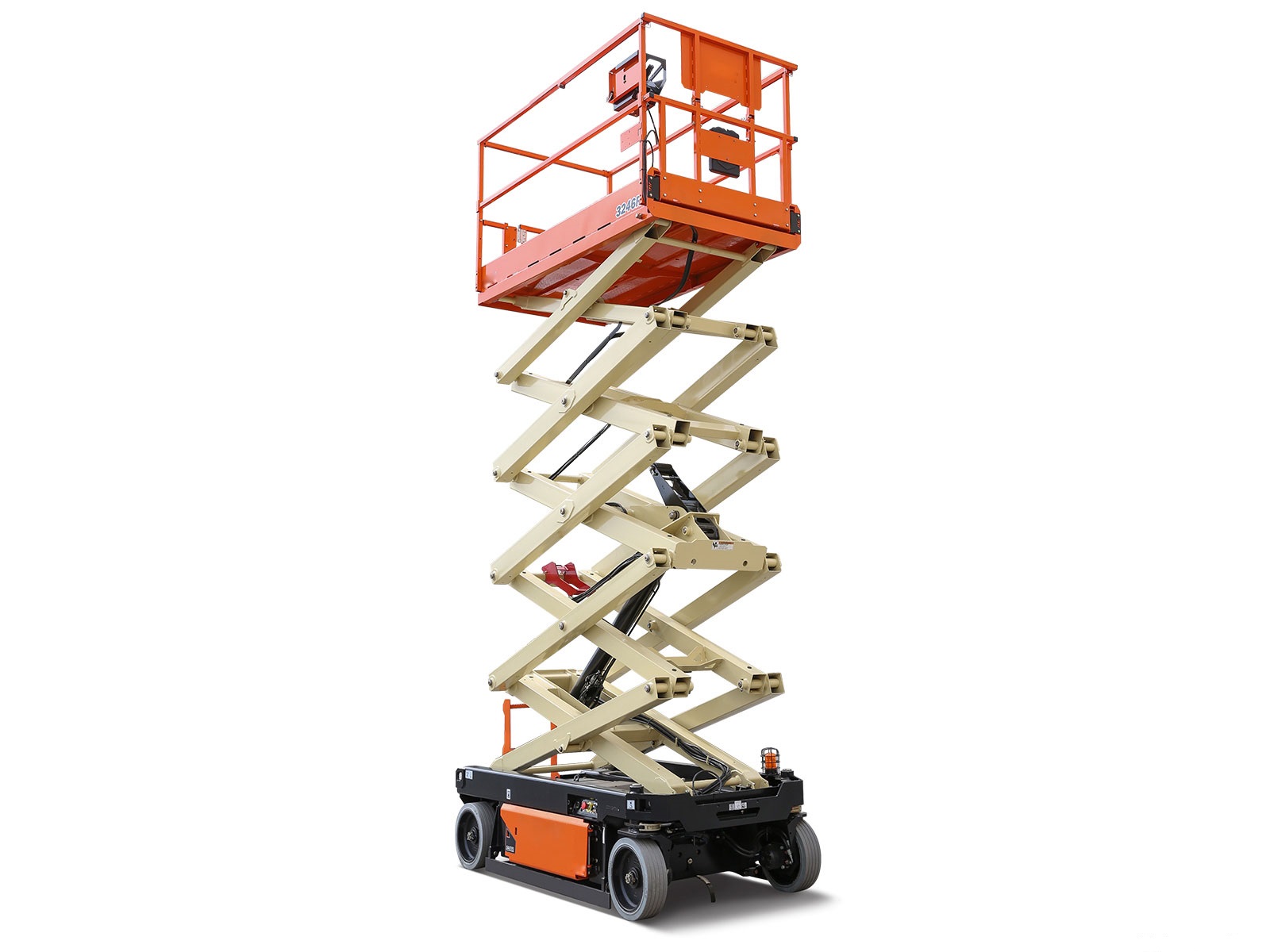

R3246

● Platform height: 9.75 meters ● Machine width: 1.17 meters ● Working height: 11.6 meters ● Experience the lightest scissors in its class: light weight and simplified lifting system. ● Deal with harsh terrain: Active pothole protection increases ground clearance. ● Meets the highest standards: Complies with 92.20 ANSI regulations.

Products Details
power supply
Battery 4 x 6V 220 Amp-hour
charger 27 amp high frequency charger

generally
brake Multi-disc friction
Capacity - Hydraulic oil tank 4 gal. / 15.14 liters
Hydraulic pump Fixed displacement gear
Machine weight 5410 lbs / 2453.93 kg
Maximum ground pressure 131 psi / 9.17 kg/cm2

performance
Travel Speed ​​- Platform Raised 0.5 mph / 0.80 km/h
Drive Speed ​​- Platform Lowered 2.2 mph / 3.54 km/h
Drivetrain Hydraulic front wheel
Gradeability 25 %
Lifting time 50 seconds.
Lower time 37 seconds.
Maximum driving height 32 ft / 9.75 m
Platform Capacity - Expansion 265 lbs / 120.20 kg
Platform Capacity - Indoor 705 lbs / 319.78 kg
Platform Capacity - Outdoor 507 lbs / 229.97 kg
Turning Radius - Inside 0 in. / 0 m
Turning Radius - Outside 7 feet 9 inches. / 2.37 meters

Number of sizes
Distance from the ground 4 in. / 0.1 m
Machine height - rails folded 6 feet 6 inches. / 1.97 meters
Machine length 7 feet 10 inches. / 2.4 meters
Machine width 3 feet 10 inches. / 1.17 meters
Platform extension length 3 feet / 0.91 meters
Platform height - lowered 4 feet 3 inches. / 1.29 meters
Platform railing height 3 feet 9 inches. / 1.13 meters
Platform size 41.6 x 84in
Tire size 16 x 5 inches unmarked
Wheelbase 6 feet 2 inches. / 1.88 meters

Meet the specifications
Platform height 32 ft / 9.75 m
Working height 38 feet / 11.58 meters
