Current Location:Home > PRODUCT > Scissor Lifts > R Series >

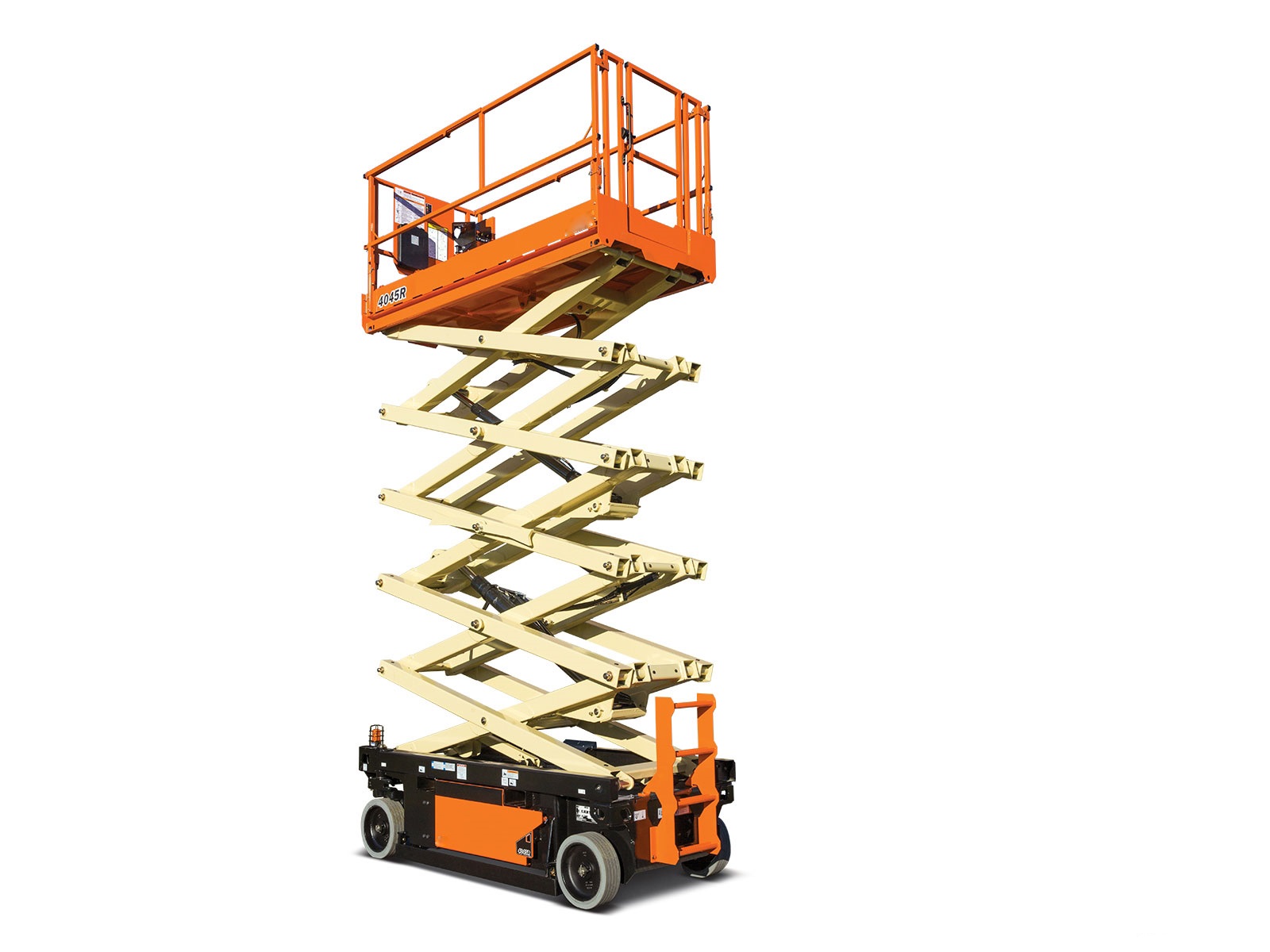

R4045

● Platform height: 11.8 meters ● Machine width: 1.14 meters ● Working height: 13.8 meters ● Narrow 45 in. width – One of the narrowest widths in its class for use in warehouse and distribution center aisles. ● Simplified reliable design – Simple hook protection system has fewer moving parts to reduce service calls. ● Rugged rental platform – The all-steel platform and steel component pallet enable it to withstand the demands of the toughest job sites.

Products Details
power supply
Battery 4 x 12v 150 amp-hour
charger 27 amp high frequency charger

generally
brake Multi-disc friction (hydraulic)
Capacity - Hydraulic oil tank 6.6 gal. / 24.98 liters
Hydraulic pump Fixed displacement gear
Machine weight 7000 lbs / 3175.15 kg
Maximum ground pressure 135 psi / 9.45 kg/cm2

performance
Travel Speed ​​- Platform Raised 0.5 mph / 0.80 km/h
Drive Speed ​​- Platform Lowered 2 mph / 3.22 km/h
Drivetrain Hydraulic front wheel
Gradeability 25 %
Lifting time 73 seconds.
Lower time 48 seconds.
Raised interior ride height 39 ft. 3 in. / 11.96 m
Raised outdoor ride height 29 ft / 8.84 m
Platform Capacity - Expansion 250 lbs / 113.40 kg
Platform Capacity - Indoor 770 lbs / 349.27 kg
Platform Capacity - Outdoor 550 lbs / 249.48 kg
Turning Radius - Inside 0 in. / 0 m
Turning Radius - Outside 8 ft. 4 in. / 2.54 m

Number of sizes
Distance from the ground 5 in. / 0.13 m
Machine height 8 ft. 4 in. / 2.54 m
Machine length 8 feet 10 inches. / 2.69 meters
Machine width 3 feet 9 inches. / 1.14 meters
Platform extension length 3 feet / 0.91 meters
Platform height - lowered 4 feet 7 inches. / 1.4 meters
Platform railing height 3 feet 8 inches. / 1.12 meters
Platform size 41in x 96in
Tire size 16 x 5 inches
Wheelbase 6 feet 8 inches. / 2.03 meters

Meet the specifications
Working height 45 ft. 3 in. / 13.79 m
